The USG Logix Yoke is an optional suspension system installation accessory that facilitates the spacing and suspension of parallel main tees with one hanger wire. The Logix yoke is compatible with both metric and imperial utility channel sizes. The yoke also keeps hanger wire wraps away from linear luminaires and can reduce the number of hanger wires required. In addition, the yoke helps to brace the utility channel and allows the entire suspension system to be installed before other ceiling elements.

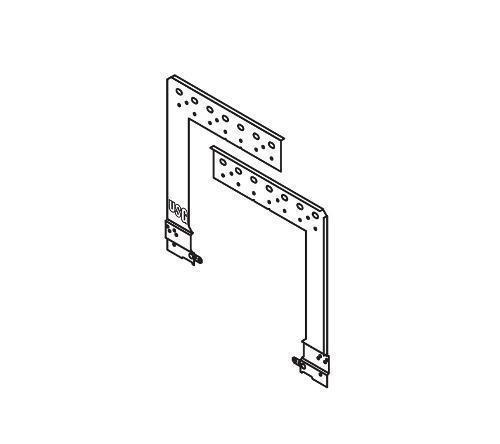

The innovative USG Logix yoke is produced in two parts to allow it to be used with 4 in., 6 in., and 12 in. utility channels, as well as 100 mm, 150 mm, and 300 mm utility channels. Yokes supporting 12 in. and 300 mm utility channels need a piece of main tee to bridge the two parts together. The two parts are attached at the desired width by inserting no. 7 screws through the marked fastener holes provided along the top of the yoke. Two screws are required in each yoke assembly. The yoke is installed at maximum intervals of 48 in. and suspended from the structure by a minimum 12-gauge, galvanized, soft-annealed steel wire, manufactured in accordance with ASTM A641. The 12-gauge hanger wire offered by USG meets these requirements.

10 pcs/ctn
